F-Sorb 3400CE surface area ana pore size analyser

F-Sorb 3400CE surface area and pore size analyzer introduction

F-Sorb X400CE series surface area and porosity analyzers are new generation instruments which were researched and developed by Gold APP Instruments and China weapons institute. Gold APP Instruments is one of analytical equipments manufacturers among world suppliers, our fully-auto and highly intelligent analyzers can match international standards and trends. Innumerable independently patented techs make Gold APP instruments enjoys great popularity at home and abroad. A high level of precision and resolution, complicity of operation, speed, compact size, and their stability guarantee our analyzers equally appropriate to industry quality control, institutes, universities and laboratories. The weapons system’s high demands and imported parts with original packaging had greatly improved instruments’ reliability and life.

F-Sorb 3400CE adopts speed and efficient flow gas adsorption principle, not only an expert for contrast reference materials method and BET method, but also a specialist for BJH total pore volume and pore size distribution analysis. Excellent cost performance can assure your investment gains with ease.


F-Sorb 3400CE surface area and pore size analyzer parameters

Measuring Method: BJH total pore volume, pore area and porosity analysis, contrast reference materials method, single and multi point BET method, Langmuir surface area, carbon black surface area (STSA), adsorption constant C.
Measuring Ranges: 0.01 m2/g to no known upper limit (specific surface area)
                      2-200nm (pore size)
Accuracy: repeatability errors ≤2%
Traffic Adjust: Gold APP patented F-Sorb micro stepping motor traffic can realize traffic auto-adjust for every P/Po point in BET analysis; traffic value auto-collected by software and real-time displayed in interface
Quantitative Dosing: patented F-Sorb quantitative pipeTM desorbs automatically, realized auto dosing for sample desorption isotherm, manual pipeline switch is not required
Manifolds’ Sealing: high vacuum system with stainless steel manifolds, sound sealing performance can eliminate errors caused by gas molecules permeation
Sample Types: powders, particle, fiber, flakes and other species
Sample Ports: 4 samples simultaneously
Analysis Gases: high purity (99.99%) He as carrier; N2 (99.99%) as adsorbate, Ar, Kr etc. are optional
Time: less than 5 minutes for every P/Po point’s adsorption and desorption; analysis data will present automated by Gold APP softwareTM
Pressure: atmospheric pressure, no need vacuum, save experiment time
Data Acquisition: high precision and integration chip, minimal errors, strong anti-interference ability
Data Reduction: Windows®-base independently developed Gold APP softwareTM, perfect versatility, ease of use and multi-model data reduction reports (pdf, word, excel, txt)
Operation System: multifunctional, fully automated, highly intelligent operation system


F-Sorb 3400CE surface area and pore size analyzer features:

Fully automated and intelligent analyzer; farewell to complex manual operation; minimal user intervention; promote efficiency; F-Sorb 3400CE had improved a lot besides F-Sorb 2400CE outstanding features.

A. Structure Design
1. Stainless manifolds system is much better than plastic manifolds, obviously enhances sealing performance, eliminates errors caused by gas molecules permeation, no ageing for manifolds, increase reliability and prolong life, more appropriate for humid environment.
2. Modularity structure satisfies customer required configuration and instrument maintenance.

B. Control System
1. Integrated multifunctional control system; motor screw rod lifting system ensures Dewar stable running.
2. Innovated balanced bridge circuit greatly improves signal voltage sensitivity, as well as achieves auto balance of signal zero drift.
3. Fully-auto operation, minimal operator involvement and work efficiency improved.

C. Data Acquisition and Reduction
1. High precision data acquisition and signal amplification, high integrated A/D transformation system, strong anti-interference ability and high real time, can reduce environmental influence on analysis procedures.
2. Utilize super sensitive thermal conductivity detection and balance system can increase detectable signal range; zero drift auto calibration system enhances stability and accuracy.
3. Independently innovated Windows® compatible software, versatile applications, flexible customer-tailor interface, ease of use; self developed data reduction module can efficiently eliminate system errors and improve precision.
4. Customer made data reports and diversified calculation models are convenient for data analyzing; powerful data archiving and searching capacity helps a lot for data management.

D. Analysis Optimize
1. Multi analysis methods, no need to convert operations frequently, all set in dedicated software.
2. Specific surface area and porosimetry analysis can switch freely, simplify operation steps and improve measurement efficiency.
3. Pioneered sample desorption isotherm integral calibration function for bigger P/Po, which advances accuracy; innovated gas amount auto-adjust system brings exactly control for high/low partial pressure in porosity measurement.


F-Sorb 3400CE surface area and pore size analyzer application

1. Super micro powder, nanomaterials, particle and fiber shaped specific surface area analysis.
2. Product quality control for powder species related corporations.
3. Research institutes, universities for BET and BJH theory teaching.
4. Full cells, catalysts, additives, adsorbent, ceramics, magnetic materials, energy storage materials etc.
5. Other researches concern surface area performance.


Contact info:
Email: sales@jinaipu.com
Tel.: 0086-10-82133318 Ext.810
Fax: 0086-10-82118197
Mobile: 0086-18210009838
IMs:
Skype: Gold-APP-Instruments

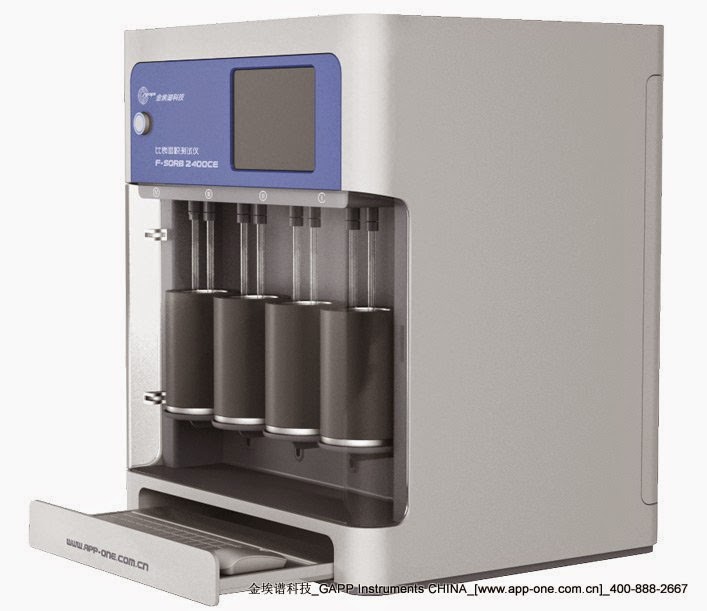

F-Sorb 2400CE BET surface area analyzer for laboratory use

F-Sorb 2400CE BET surface area analyzer introduction

F-Sorb X400CE series surface area and porosity analyzers are new generation instruments which were researched and developed by Gold APP Corporation and China weapons institute. Innumerable independently patented techs make Gold APP instruments enjoy great popularity at home and abroad. A high level of precision and resolution, complicity of operation, speed, compact size, and their stability guarantee our analyzers equally appropriate to industry quality control, institutes, universities and laboratories. The weapons system’s high demands and imported parts with original packaging had greatly improved instruments’ reliability and life. The high cost performance of F-Sorb X400CE series analyzers easily ensure your investment profits and flexible equipped peripheral can satisfy different users’ demands.

F-Sorb 2400CE adopts speed and efficient continuous flow nitrogen adsorption principle, is an expert for contrast reference materials method and BET method analysis. BET method is universally recognized and the most commonly used way for nitrogen adsorption surface area analysis. No need of reference materials (RM) and utilizes sorption with incorporates multilayer coverage to calculate surface area. Experimental data do not vary with different sample types, high accuracy and quite scientific make F-Sorb 2400CE be a desirable for quality control in production field, research institutes and universities.


F-Sorb 2400CE BET surface area analyzer parameters

Measuring Method: reference materials method, single and multi point BET method, Langmuir surface area, adsorption and desorption isotherm, average particle size estimate, carbon black external surface (STSA), adsorption constant C analysis etc.
Measuring Ranges: 0.01 m2/g to no known upper limit (surface area)
Accuracy: repeatability errors ≤1%
Traffic Adjust: Gold APP patented F-Sorb micro stepping motor traffic can realize traffic auto-adjust for every P/Po point in BET analysis; traffic value auto-collected by software and real-time displayed in interface
Quantitative Dosing: patented F-Sorb quantitative pipe TM desorbs automatically, realized auto dosing for sample desorption isotherm, manual pipeline switch is not required
Manifolds Sealing: high vacuum system with stainless steel manifolds, sound sealing performance can eliminate errors caused by gas molecules permeation
Sample Types: powders, particle, fiber, flakes and other species
Sample Ports: 4 samples simultaneously
Analysis Gases: high purity (99.99%) Helium as carrier; Nitrogen (99.99%) as adsorbate; Ar, Kr etc. are optional
Time: less than 5 minutes for every P/Po point’s adsorption and desorption; analysis data will present automated by Gold APP softwareTM
Pressure: atmospheric pressure, no need vacuum, save experiment time
Data Acquisition: high precision and integration chip, minimal errors, strong anti-interference ability
Data Reduction: Windows®-base independently developed Gold APP softwareTM, perfect versatility, ease of use and multi-model data reduction reports
Operation System: multifunctional, fully automated, highly intelligent operation system


F-Sorb 2400CE BET surface area analyzer features:


A. Structure Design
1. Stainless manifolds system is much better than plastic manifolds, obviously enhances sealing performance, eliminates errors caused by gas molecules permeation, no ageing for manifolds, increase reliability and prolong life, more appropriate for humid environment.

B. Control System
1. Integrated multifunctional control system; motor screw rod lifting system ensures Dewar stability.
2. Innovated balanced bridge circuit greatly improves signal voltage sensitivity, as well as achieves auto balance of signal zero drift.
3. Fully-auto operation, minimal operator involvement and work efficiency improved.

C. Data Acquisition and Reduction
1. High precision data acquisition and signal amplification, high integrated A/D transformation system, strong anti-interference ability and high real time, can reduce environmental influence on analysis procedures.
2. Utilize super sensitive thermal conductivity detection and balance system can increase detectable signal range; zero drift auto calibration system enhances stability and accuracy.
3. Independently innovated Windows® compatible software, versatile applications, flexible customer-tailor interface, ease of use; self developed data reduction module can efficiently eliminate system errors and improve precision.
4. Customer made data reports and diversified data calculation models are convenient for data analyzing; powerful data archiving and searching capacity helps a lot for data management.

D. Analysis Optimize
1. Multi analysis methods, no need to convert operations frequently, all set in dedicated software.
2. Contrast reference materials method and BET method can switch freely, simplify operation steps and improve measurement efficiency.
3. Pioneered gas amount auto-adjust system brings extremely accurate, stable and no user intervention analysis.
4. Can be upgraded to F-Sorb 3400CE.


F-Sorb 2400CE BET surface area analyzer applications

1. Super micro powder, nanomaterials, particle and fiber shaped surface area analysis.
2. Product quality control for powder species related corporations.
3. Research institutes, universities for BET theory teaching.
4. Full cells, catalysts, additives, adsorbent, ceramics, magnetic materials, energy storage materials etc.
5. Other researches concern surface area performance.

Contact info:
Email: sales@jinaipu.com
Tel.: 0086-10-82133318 Ext.810
Fax: 0086-10-82118197
Mobile: 0086-18210009838
IMs:
Skype: Gold-APP-Instruments






F-Sorb 1400CE specific surface area analyzer

F-Sorb 1400CE surface area analyzer introduction

F-Sorb X400CE series surface area and porosimetry analysers are new generation instruments which were researched and developed by Gold APP Instruments and China weapons institute. Gold APP Instruments is the ONLY one domestic manufacturer can produce no user intervention, fully-auto and highly intelligent analyzers which can match international standards and trends. Innumerable independently patented techs make Gold APP instruments enjoy great popularity at home and abroad. A high level of precision and resolution, complicity of operation, speed, compact size, and their stability guarantee our analyzers equally appropriate to industry quality control, institutes, universities and laboratories. The weapons system’s high demands and imported parts with original packaging had greatly improved instruments’ reliability and life. The high cost performance of F-Sorb X400CE series analyzers easily ensure your investment profits and flexible equipped peripheral can satisfy different users’ demands.

F-Sorb 1400CE adopts speed and efficient continuous flow nitrogen adsorption principle, is a bosom friend for contrast reference materials method analysis which calculates surface area by comparing with reference materials’ (RM) adsorption/desorption isotherm. No need of gas adsorption/desorption amount dosing, suitable for those samples have similar adsorption performance with RM. F-Sorb 1400CE mainly be used for quality control of production field, quick speed is its primary and pleased advantage which makes it easily stay ahead of your competition.

F-Sorb 1400CE surface area analyzer parameters

Measuring Method: contrast reference method by dynamic nitrogen adsorption
Measuring Ranges: 0.01 m2/g to no known upper limit (surface area)
Accuracy: repeatability deviations ≤1%
Sample Types: powders, particle, fiber, flakes and other species have similar adsorption performance with reference materials (RM)
Sample Ports: 4 samples simultaneously
Adsorbate: mixed He+N2 (4:1) with high purity
Time: about 5 minutes for every P/Po point’s adsorption and desorption; analysis data will present automated by Gold APP softwareTM
Pressure: atmospheric pressure, no need vacuum, save experiment time
Data Acquisition: high precision and integration chip, minimal deviations, strong anti-interference ability
Data Reduction: Windows®-base independent developed Gold APP softwareTM, perfect versatility, ease of use and multi-model data reduction reports.
Operation System: multifunctional, fully automated, highly intelligent operation system

F-Sorb 1400CE surface area analyzer features:

Domestic first fully automated and intelligent analyzer; farewell to complex manual operation; minimal operator involvement; promote efficiency.

A. Structure Design
1. Modern design with compact size can save your valuable bench space.
2. Stainless steel manifold system obviously improves sealing performance, eliminates deviations caused by gas molecules permeation, no ageing for manifolds, increase reliability and prolong life.

B. Control System
1. Integrated multifunctional control system; motor screw rod lifting system ensures Dewar stability.
2. Innovated balanced bridge circuit greatly improves signal voltage sensitivity, as well as realizes auto balance of signal zero drift.
3. Fully-auto operation, minimal user involvement and work efficiency improved.

C. Data Acquisition and Reduction
1. High precision data acquisition and signal amplification, high integration A/D transformation system, strong anti-interference ability and high real time, can reduce environmental influence on analysis procedures.
2. Independently innovated Windows compatible software, versatile applications, flexible customer-tailor interface, ease of use; Self developed data reduction module can efficiently eliminate system deviations and improve accuracy.
3. Customer made data reports, diversified forms module, convenient for data analyzing; powerful data archiving and searching capacity helps a lot for data management.
4. Can be upgraded to F-Sorb 2400CE.


F-Sorb 1400CE surface area analyzer applications

1. Super micro powder, nanomaterials, particle and fiber shaped specific surface area analysis.
2. Product quality control for powder species related corporations.
3. Research institutes, universities for BET theory teaching.
4. Full cells, catalysts, additives, adsorbent, ceramics, magnetic materials, energy storage materials etc.
5. Other researches concern surface area performance.
